Fiber Inline Phase Shifter – Piezoelectric (up to 50π)

Fiber Inline Phase Shifter – Piezoelectric (up to 50π)
Features:
  • Up to 40π
  • 400nm to 2600nm
  • High Polarization Extinction 29 dB
  • All Fiber Type
  • 400nm to 2600nm
  • Bidirectional
  • Low Insertion Loss
  • Compact Size
  • High Optical Power Handling

Email Inquiry (Preferred)
Fast Quote-Select Part #
Questions About This Product
Phone Call Requires Email to Set-Up

SKU: PIPS

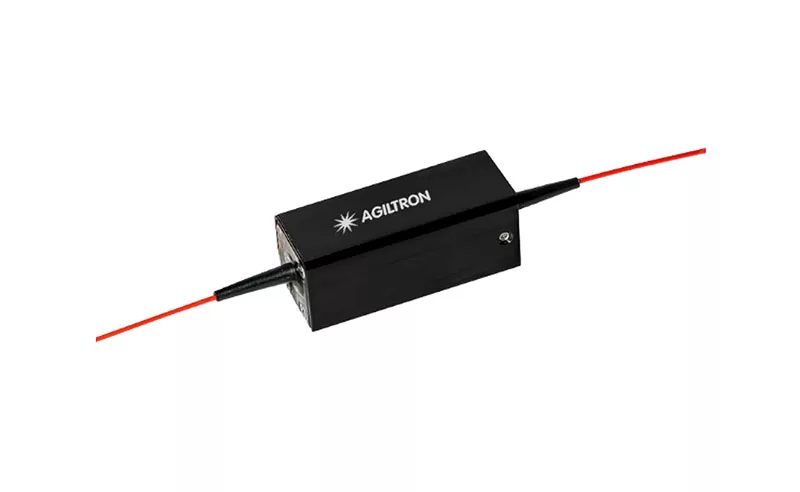

The Piezoelectric Fiber Phase Shifter (PIPS) uses a pair of aligned fiber collimators; applying voltage to a piezoelectric actuator varies their separation to produce a controlled optical phase (or time) delay. It offers low insertion loss, excellent polarization and mode-field preservation, compatibility with common fiber types (SM, PM, LMA), high-power handling, and a wide phase-shift range. We offer a compact driver to mount the device, providing 0–5 V control with modulation up to 1 kHz; control is via an SMA input and power is 12 V DC. Designed for fast, continuous operation, the device achieves large phase excursions near mechanical resonance, reducing drive power for applications requiring strong phase modulation. Each unit is rigorously tested and calibrated, delivering a robust, cost-effective solution for precision fiber phase shifting.

7 π Single-Mode Fiber Selection Without Connector/Driver
Fiber Type SM400
 SM450 SM600 780HP SM980
 Hi1060 SM28 SM1950
Wavelength Range* 360 – 530nm 480 – 650nm 620 – 650nm 760 – 980nm 980 – 1550nm 960 – 1080nm 1020 – 1900nm 1.7 – 2.3 µm
Insertion Loss <3dB <1.3dB <1.3dB <1 dB <1dB <0.9dB <0.4dB ≤0.4dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.2W 0.3W 0.4W 0.2W 0.7W 1W 1W
Datasheet
Price $𝟣,𝟥𝟥𝟢 $𝟣,𝟤𝟣𝟧 $𝟣,𝟣𝟢𝟢 $𝟣,𝟣𝟢𝟢 $𝟣,𝟣𝟢𝟢 $𝟫𝟫𝟢 $𝟪𝟪𝟢 $𝟣,𝟤𝟫𝟧
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
25 π Single-Mode Fiber Selection Without Connector/Driver
Fiber Type SM400
 SM450 SM600 780HP SM980
 Hi1060 SM28 SM1950
Wavelength Range* 360 – 530nm 480 – 650nm 620 – 650nm 760 – 980nm 980 – 1550nm 960 – 1080nm 1020 – 1900nm 1.7 – 2.3 µm
Insertion Loss <3dB <1.3dB <1.3dB <1 dB <1dB <0.9dB <0.4dB ≤0.4dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Max Optical Power 0.2W 0.2W 0.3W 0.4W 0.2W 0.7W 1W 1W
Datasheet
Price $𝟣,𝟥𝟥𝟢 $𝟣,𝟧𝟣𝟧 $𝟣,𝟥𝟩𝟢 $𝟣,𝟥𝟩𝟢 $𝟣,𝟥𝟩𝟢 $𝟣,𝟤𝟦𝟢 $𝟣,𝟣𝟢𝟢 $𝟣,𝟨𝟤𝟢
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
7 π Polarization Maintaining Fiber Selection Without Connector/Driver
Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3dB <3dB <1.5dB <1.4dB <1.3 dB <1.1dB <0.5dB <0.7dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $𝟣,𝟧𝟤𝟨 $𝟣,𝟦𝟣𝟥 $𝟣,𝟥𝟣𝟪 $𝟣,𝟤𝟩𝟢 $𝟣,𝟤𝟩𝟢 $𝟣,𝟤𝟩𝟢 $𝟫𝟤𝟤 $𝟣,𝟫𝟣𝟥
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
25 π Polarization Maintaining Fiber Selection Without Connector/Driver
Fiber Type PM405
 PM460 PM630 PM780 PM850 PM980 PM1550 PM1950
Wavelength Range* 400 – 680nm 460 – 700nm 620 – 650nm 760 – 800nm 830 – 870nm 960 – 1080nm 1260 – 1650nm 1850 – 2200nm
Insertion Loss <3dB <3dB <1.5dB <1.4dB <1.3 dB <1.1dB <0.5dB <0.7dB
Isolation 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB 70 dB
Datasheet
Price $𝟣,𝟪𝟤𝟨 $𝟣,𝟩𝟣𝟥 $𝟣,𝟨𝟣𝟪 $𝟣,𝟧𝟩𝟢 $𝟣,𝟧𝟩𝟢 $𝟣,𝟧𝟩𝟢 $𝟣,𝟣𝟧𝟢 $𝟤,𝟥𝟩𝟢
Buy buy_now buy_now buy_now buy_now buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
Multi-Mode Fiber Selection
Fiber Type MM 50/125
 MM 62.5/125 MM 105/125 STP 50/125
Wavelength Range* 350 – 2500nm 350 – 2500nm 350 – 2500nm 700 – 1000nm
Insertion Loss ≤0.3dB ≤0.3dB ≤0.5dB ≤0.5dB
Isolation 50dB 50dB 50dB 50dB
Datasheet
Price $𝟨𝟦𝟫 $𝟨𝟨𝟨 $𝟨𝟪𝟦 $𝟫𝟩𝟢
Buy buy_now buy_now buy_now buy_now
* The wavelength dependence is solely determined by the fiber property
