SKU: ILPM

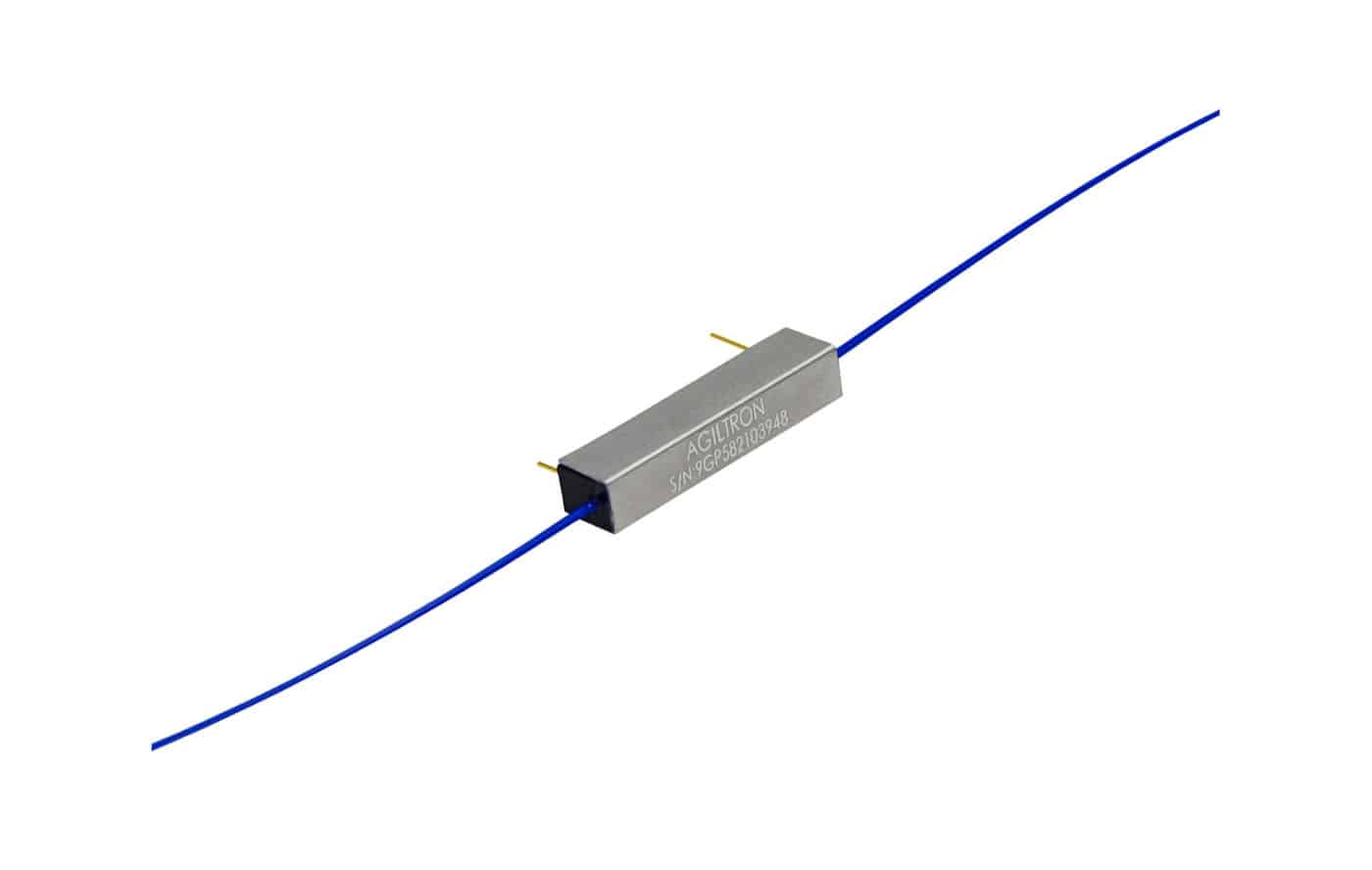

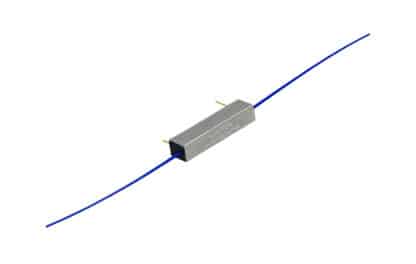

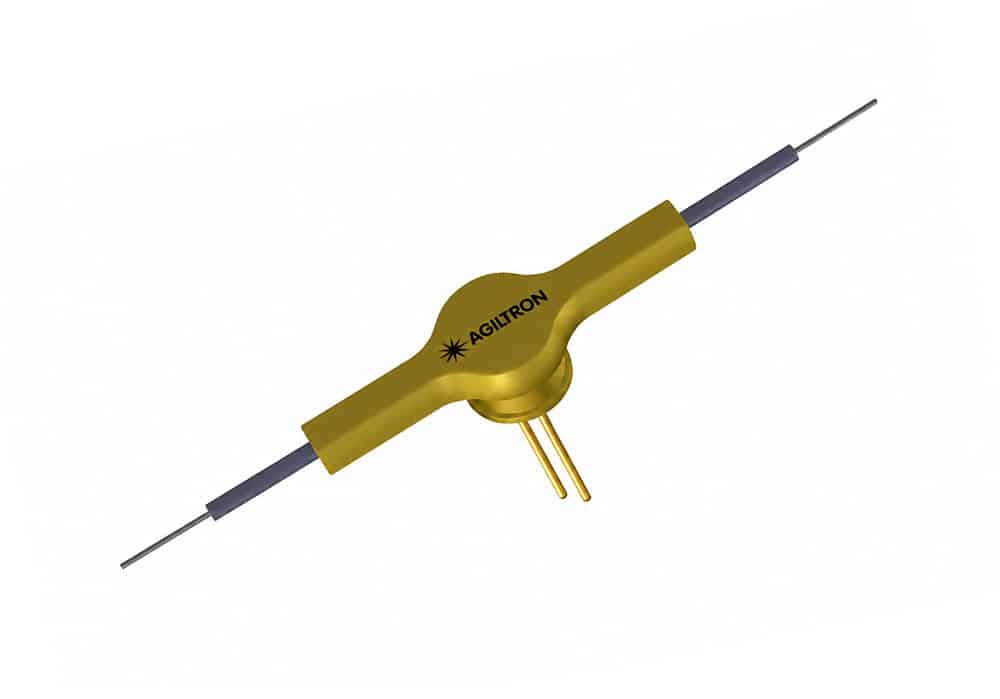

Agiltron ILPM Series Fiber Optic Tap Power Monitors deliver unmatched performance for in-line optical power measurement and precision power control. They feature ultra-low insertion loss, high directivity, high power handling capability, minimal polarization and wavelength dependence, and low cost. The ILPM Series is based on a patented design that taps a portion of light through a groove formed along the side of a continuous optical fiber. This approach eliminates the need for lenses and optical coatings typically used in conventional fiber tap monitors, resulting in superior performance and reliability. The continuous-fiber structure is particularly well suited for compatibility with various fiber types, ultra-broad operating wavelengths, and high-power applications. Each power monitor is packaged in a miniature ceramic housing that integrates a GaAs or silicon PIN photodiode. The devices are qualified to meet GR-1209 and GR-1221 standards. Due to their high sensitivity to electrostatic discharge (ESD), warranty coverage applies only to fully metal-covered modules with proper ESD protection. Handle these devices with extreme care and avoid direct hand contact at all times.
| Fiber Type | SM400 |
SM450 | SM600 | 780HP | Hi1060 | SM28 | SM1950 | 50/125 | 50/125 |
105/125 | 105/125 | 200 | 300 | 400 | 600 | 800 | 1000 |
| Wavelength (nm) | 300 – 400 | 450 – 650 | 620 – 750 | 760 – 850 | 960 – 1080 | 1250 – 1650 | 1700 – 2300 | 400 – 980 | 850 – 1600 | 400 – 980 | 850 – 1600 | 400 – 980 | 400 – 980 | 400 – 980 | 400 – 980 | 400 – 980 | 400 – 980 |
| Fiber Cover (mm) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Fiber Length (m) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Connector | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | FC/PC | FC/PC | FC/PC | FC/PC | SMA | SMA | SMA | SMA | SMA | SMA |
| Datasheet |  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Price | $𝟥𝟦𝟢 | $𝟤𝟥𝟪 | $𝟤𝟣𝟥 | $𝟤𝟢𝟥 | $𝟣𝟤𝟥 | $𝟣𝟣𝟨 | $𝟥𝟥𝟪 | $𝟣𝟦𝟤 | $𝟣𝟥𝟩 | $𝟤𝟢𝟫 | $𝟤𝟢𝟫 | $𝟥𝟪𝟩 | $𝟥𝟪𝟩 | $𝟥𝟪𝟩 | $𝟥𝟪𝟩 | $𝟥𝟪𝟩 | $𝟥𝟪𝟩 |
| Buy |  |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5% discount > 5, 10% discount > 10, 20% discount > 100
| Fiber Type | PM400 | PM460 | PM630 | PM780 | PM850 | PM980 | PM1550 | PM1950 | ||||||||
| Wavelength (nm) | 400 – 600 | 460 – 700 | 620 – 750 | 760 – 850 | 830 – 930 | 910 – 1100 | 1000 – 1650 | 1200 – 2200 | ||||||||
| Insertion Loss (dB) | ~0.3 | ~0.3 | ~0.3 | ~0.3 | ~0.3 | ~0.3 | ~0.3 | ~0.3 | ||||||||
| Fiber Cover (mm) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | ||||||||
| Fiber Length (m) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||||
| Connector | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | FC/APC | ||||||||
| Datasheet | |
|
|
|
|
|
|
|
||||||||
| Price | $𝟥𝟤𝟥 | $𝟤𝟩𝟦 | $𝟤𝟦𝟢 | $𝟤𝟤𝟨 | $𝟤𝟤𝟨 | $𝟤𝟤𝟨 | $𝟣𝟫𝟣 | $𝟥𝟩𝟤 | ||||||||
| Buy | |
|
|
|
|
|
|
|
||||||||
