Fiber Optical Circulator 360-785nm

SKU: OCST

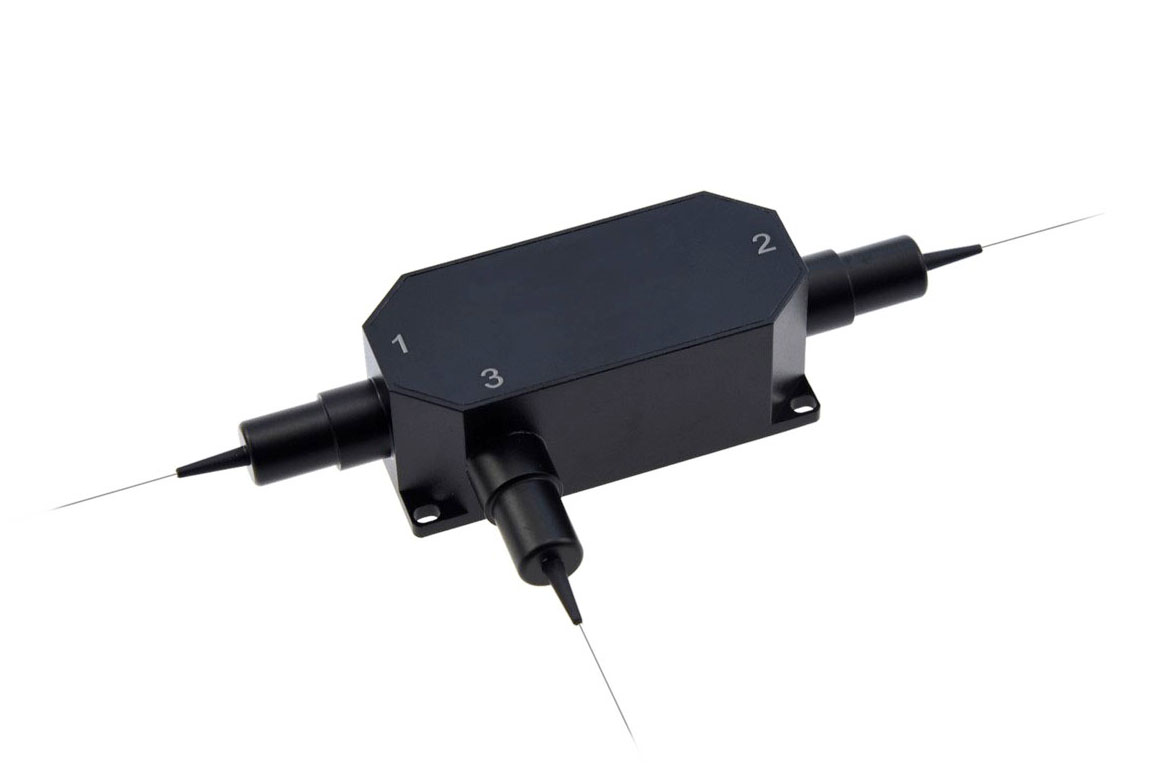

This Series Optical Circulators is a three-port device that allows light to travel in only one direction. A signal entering Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2 experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1. Optical circulators are non-reciprocal devices. We uniquely offer high crosstalk between PM input signal at port 1 and reflection signal at port 3 up to 70dB, and high optical power of up to 10W, high polarization extinction ratio of up to 30dB. With our proprietary magnetic-optics technology and proven advanced micro-optics design, the circulator features low insertion loss, high isolation, high power handling, and high stability. Optical circulators are widely used in sensor and communication systems. Agiltron also provides customized designs to meet special applications.

Fiber Type	SM400	PM400		SM450	PM460		SM600	PM630		Hi780	PM780		SM800	PM850		PM980
Wavelength (nm)	360-600	400-600		450-650	460-700		620-750	620-750		760-850	760-850		830-870	830-930		910-1100
Insertion Loss (dB)	~ 3	~ 3		~ 3	~ 3		~ 2.5	~ 2.5		~ 1.6	~ 1.6		~ 1.5	~ 1.5		~ 1.5
Isolation (dB)	> 25	> 25		> 25	> 25		> 25	> 25		> 25	> 25		> 25	> 25		> 25
Polarization Extinction (dB)	N/A	>17	>25	N/A	>17	>25	N/A	>18	>26	N/A	>18	>26	N/A	>18	>26	>18	>26
Optical Power (W)	0.03	0.07		0.05	0.1		0.1	0.1		0.2	0.2		0.3	0.3		0.3
Fiber Cover (mm)	0.9	0.9		0.9	0.9		0.9	0.9		0.9	0.9		0.9	0.9		0.9
Fiber Length (m)	0.5	0.5		0.5	0.5		0.5	0.5		0.5	0.5		0.5	0.5		0.5
Connector	FC/APC	FC/APC		FC/APC	FC/APC		FC/APC	FC/APC		FC/APC	FC/APC		FC/APC	FC/APC		FC/APC
Datasheet
Price	$𝟤,𝟪𝟨𝟢	$𝟤,𝟥𝟧𝟢	$𝟤,𝟫𝟪𝟢	$𝟣,𝟪𝟧𝟢	$𝟤,𝟤𝟧𝟢	$𝟤,𝟫𝟧𝟢	$𝟣,𝟨𝟧𝟢	$𝟣,𝟪𝟫𝟢	$𝟤,𝟥𝟩𝟢	$𝟣,𝟦𝟥𝟢	$𝟣,𝟨𝟫𝟢	$𝟣,𝟫𝟪𝟢	$𝟣,𝟤𝟧𝟢	$𝟣,𝟧𝟦𝟧	$𝟣,𝟫𝟪𝟢	$𝟣,𝟤𝟪𝟢	$𝟣,𝟩𝟧𝟪
