MEMS Variable Fiber Optical Attenuators (VOAs)
We produce a wide range of fiber optical attenuators for all application scenarios. The types include VOAs made of 2D MEMS having good repeatability and low cost; VOAs made of 1D MEMS having >70 dB high attenuation; VOAs made of fiber directly coupled to fiber MEMS having ultra-low loss <0.2dB, ultra-broadband 350 to 240nm, vibration insensitive; and VOAs made of optical crystals having ultra-fast V < 100ns response. Many of them can be configurated to handle: high power up to 10W, large core fibers up to 1mm, ultra-small size, large array, precision, and high repeatability with feedback control. These VOA series are in full compliance with the Telcordia 1209 and 1221 reliability standards.
-
Direct Driver Variable Fiber Optical Attenuators: BNC
1.5kHz, 450nm~2630nm
$321+
-
High Precision/Repeatability MEMS VOAs
(0.1dB repeatability, 70dB attenuation, 1060 to 2300nm, 0.7dB loss, SM, PM, MM)
-
MEMS Fiber Optical Variable Attenuator – 2D
(850nm, 1260-1630nm, 500mW, 0.3ms Rise/Fall)
$89+
-
High Extinction MEMS Fiber Optical Variable Attenuator – 1D
(>70dB, 1060 to 2300nm, 0.7dB loss, SM, PM, MM)
$103+
-
Vibration Insensitive MEMS Ultra Mini Variable Optical Attenuator – 1D
(fastest/smallest MEMS VOA on the market)
$230+
-

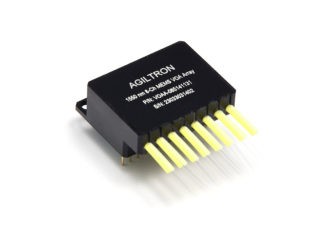

Ultra-Compact Multi-Channel MEMS Variable Optical Attenuator Array
up to 8, 12, 24 Channels, 780 to 2400nm, SM, MM, PM
$1285+
-

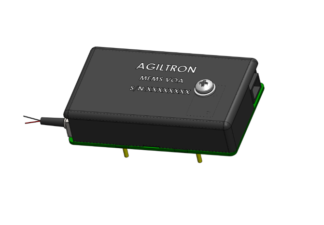

Precision Variable Optical Attenuator Programmable Array System
(net-ready, precision feedback control, high speed, SM/MM, broadband)
$3092+
-
Fiber Tip MEMS Variable Fiber Optical Attenuator
(for integration with transceivers, lasers, sensors)
$261+
-

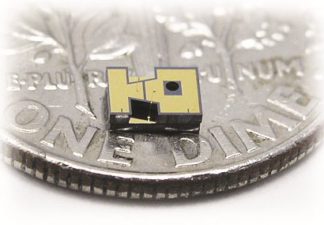

MEMS Free Space VOAs
(large motion, low optical loss, low cost)
$98+
-
Scanning MEMS Mirror – 0.6, 1.5, 2.0 mm Diameter
single and dual-axis, up to 7 degree, high precision, high repeatability
$287+
